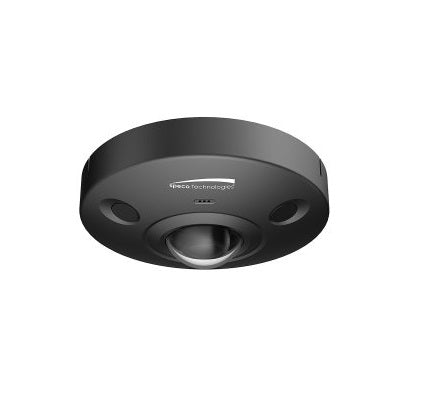

The SPECO O6MDP2 is a 6MP H.265 360° Panomorph Camera that have 1.3mm panomorph lens in color Black Housing. It utilizes a 36 degree capture the easiest way by breaking down or de-warpping the fisheye image captured from the camera into various modes, and directly recording them on Speco's NVR or VMS without another software.
-  360° field of view with built-in panomorph Immervision Enables® lens
- āSupports up to 6MP resolution @ 30fps
- Adaptive IR LEDs reduce IR saturation
- Built-in standard PoE (IEEE 802.3af)
- Triple codec (H.265/H.264/MJPEG)
- Ā Micro SD card slot (card not included)
- 2-way audio communication
- Supports dewarped output view from camera
- Ā Sensor input and relay output
- IP67 compliant, weather resistant
- IK10 compliant, vandal resistant
- UL listed
- Conformant with ONVIF Profile S
- Ā 5 year warranty
Ā
Camera Specifications
Ā
Image Sensor : Progressive scan 1/1.8ā CMOS, 6MP
Maximum Resolution : 3072 x 2048
Minimum Illumination : F2.8, 0 lux (IR LED on)
Day/Night : IR cut filter
IR Distance : 33 ft. (depending on scene reflection)
White Balance : Auto / Presets / Manual
Compensation : DWDR / BLC / HLC
Electronic Shutter Speed : 1/3 - 1/100000 sec
DNR : 3D
Ā
Video Specifications
Ā
Main Resolution :
3072x2048 / 2048x2048 / 2048x1536 /
1600x1200 @ 30fps
Ā
Compression : H.265, H.264, MJPEG
Bitrate Control : VBR, CBR
Multiple Streaming : 3 streams
Ā
External Terminal Specifications
Ā
Ethernet : 10/100 Mbps
Alarm : 2 sensor inputs, 2 relay outputs
Audio : 1 mic in, 1 line out (RCA)
Storage : Micro SD slot
Power : DC jack
Ā
System Specifications
Ā
PoE : Standard (IEEE 802.3af)
Analytics : Motion detection, audio detection
Alarm Triggers : Analytics & sensor input
Alarm Events : FTP upload, email upload, relay out
Image Settings : Privacy mask
Ā
Operating & Unit Specifications
Ā
Power : PoE, 12VDC (power supply not included)
Power Consumption : 12W
Operating Temperature : -22°F - 140°F
Operating Humidity : 0% - 90% RH
Unit Dimensions : 5.9ā (Dia.) x 2ā (H)
Unit Weight : 1.3 lbs.
Certifications : FCC, UL, RoHS
Ā
Network Specifications
Ā
Protocols :
IPv4/v6, TCP, UDP, RTP, RTSP, HTTP,
HTTPS, SMTP, FTP, DHCP, UPnP, DNS
Ā
DDNS support : Speco DDNS (free of charge)
Security : User ID & Password protection,
IP address filtering, digest authentication
Ā
User Access :
Max. 10 simultaneous users, Actual number of users may
vary depending on bandwidth
Ā
Ā
Ā
Ā
Ā
NEW IN THE BOX
