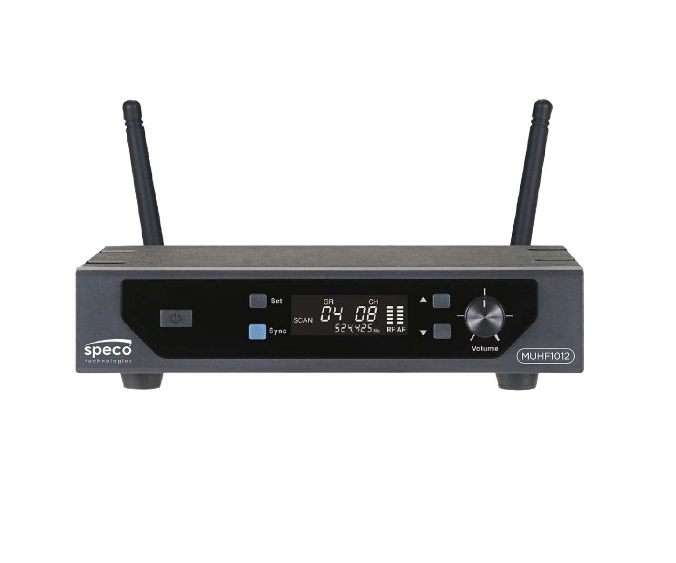

Speco Single Channel Diversity UHF Receiver, Part# MUHF1012
Audio Amplifiers

Speco Single Channel Diversity UHF Receiver, Part# MUHF1012

Availability: In Stock
$275.67
Wishlist Compare

The efficient Speco MUHF1012 Single Channel Diversity UHF Receiver is a multi-channel diversity UHF receiver designed for professional audio and public address applications, providing stable wireless microphone reception across multiple simultaneous channels with diversity antenna technology to eliminate dropouts caused by multipath interference in large venues, conference rooms and public spaces.

Features:

  • True diversity transmission range : up to 100 meters/300
    feet
  • Clear VA LCD displays frequency, group, channel and AF/
    RF levels
  • 700 available UHF frequency channels
  • Automatically scans & selects available channels
  • Preset 8 frequency group containing 12 channels each
  • Up to 8~12 systems can be used simultaneousl
  • Detachable receive antennas for using with professionalĀ antenna systems
  • Balanced XLR and unbalanced Ā¼ā€ jack output
  • Easy to be installed into a standard 10ā€ rack by rack ears
  • One button synch

Ā

Specifications:

  • Carrier Frequency Range: UHF band 520 – 937.5MHz
  • Oscillator: PLL synthesized
  • Modulation: FM
  • Frequency Stability: ±0.005%
  • S/N Ratio: More than 100dB, at 20kHz deviation &Ā 60dBmV antenna input
  • Maximum Deviation: ±48kHz
  • Image and Spurious Rejection: 70dB minimum
  • Receiving Sensitivity: At 5uV over 70dB S/N ratio
  • Selectivity: More than 50dB
  • AF Response: 50Hz – 18kHz
  • T.H.D: More than 1% (at 1kHz)
  • IF Frequency 1st: 243.95MHz 2nd:10.7MHz
  • Dynamic Range: More than 100dB
  • Tone Signal: 32.768kHz
  • Audio Output: Balanced and unbalanced audio outputs
  • Power Supply: 12VDC (power supply included)
  • Current Consumption Single Channel: about 260mA

Dimensions: 7.9ā€ (W) x 1.7ā€ (H) x 7.2ā€ (D) inches

Ā

NEW IN THE BOX
