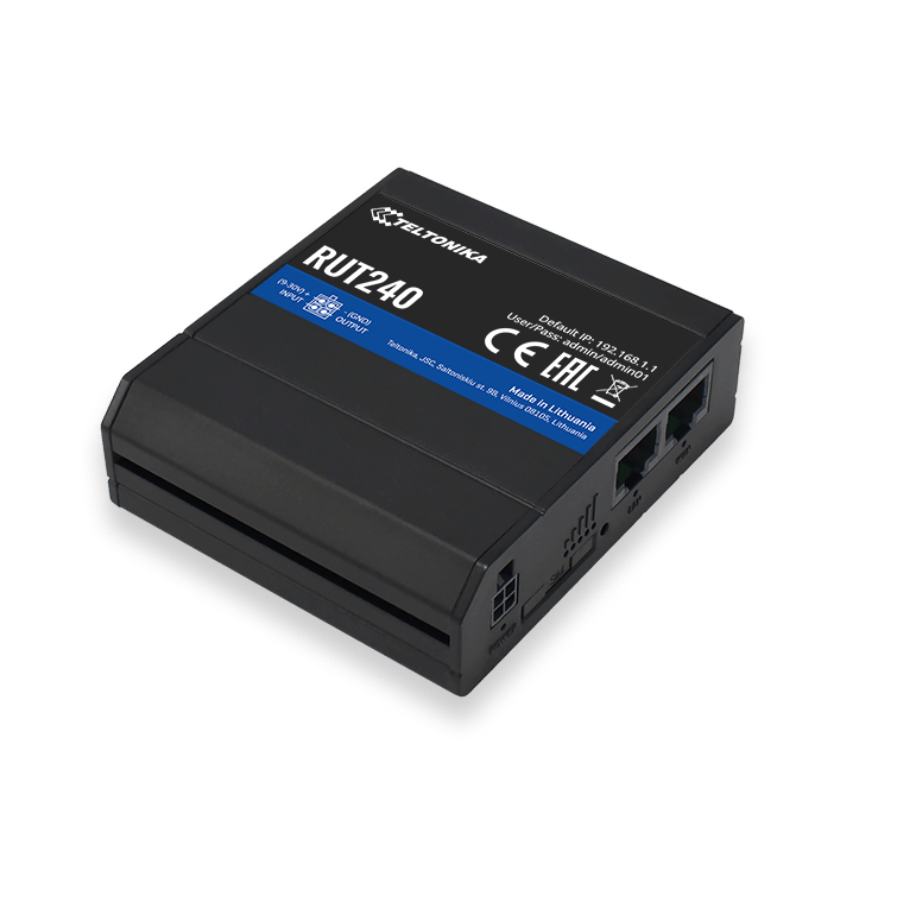

Teltonika RUT240 LTE Router (AT&T, T-Mobile), Part# RUT240-AT

Teltonika RUT240 LTE Router (AT&T, T-Mobile), Part# RUT240-AT

Availability: In Stock
$165.00
Wishlist Compare

LTE CAT4 INDUSTRIAL CELLULAR ROUTER



RUT240 is equipped with 2 x Ethernet and Wireless interfaces with Hotspot functionality. Device provides secure and stable Internet connectivity for Industrial applications using RutOS software and security features such as OpenVPN, IPsec, Firewall, Hotspot, SMS control and RMS support.



Hardware


Mobile : 4G (LTE) – Cat 4 DL up to 150 Mbps, UL up to 50Mbps; DC-HSPA+; UMTS; TD-SCDMA; EDGE; GPRS
CPU : Atheros Hornet, MIPS 24Kc, 400 MHz
Memory : 16 MBytes Flash, 128 MBytes DDR2 RAM
Ethernet : 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
Power supply : 9 – 30 VDC, 4 pin DC connector
Inputs/Outputs : 1 x Digital Input, 1 x Digital Open Collector Output on power connector
Connectors : 1 x 4 pin DC, 2 x Ethernet, 2 x Mobile SMA, 1 x WiFi RP-SMA
SIM : 1 x external SIM holder
Status LEDs : 2 x connection type status, 5 x connection strength, 2 x LAN status, 1 x Power
Operating temperature : -40 °C to 75 °C
Housing : Aluminium housing, plastic panels
Dimensions 83 mm x 74 mm x 25 mm
Weight 125 g



Software


Operating system : RutOS (OpenWrt based Linux OS)
Multiple PDN : Possibility to use different PDNs for multiple network access and services
Network protocols : TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP

Networking features : NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Unique networking features : VLAN, Load balancing, Mobile quota control, WEB Filter, Network Backup, Auto Failover
Connection monitoring : Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
Authetication : Pre-shared key, digital certificates, X.509 certificates
Keep settings : Update FW without losing current configuration
Monitoring & Management : WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
Supported languages : Busybox shell, Lua, C, C++
Development tools : SDK package with build environment provided



NEW IN THE BOX
