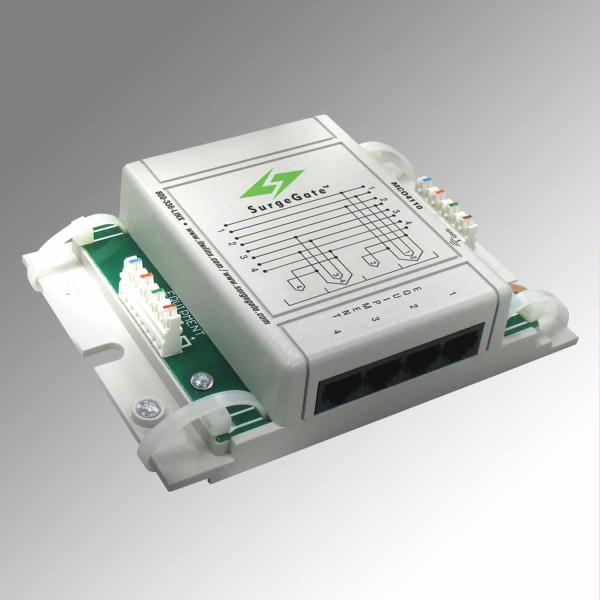

Towermax Co4 110 Connectors
Installation Equipment

Towermax Co4 110 Connectors

Availability: In Stock
$89.88
Wishlist Compare
  • Towermax Co4 110 Connectors
  • Analog Station Set And Central Office Line Protector
  • Protects Up To 8wires (4pairs) Using 110 Punchdown Block On The Input And 110 Punchdown Block Or 4 Rj11 Or 2 Rj45 On Output.
  • Autoresetting Technology: Ptc Resistors Open When A Surge Occurs Protecting Your Equipment But Unlike Other Fuses The Ptcs Close Again Once The Surge Passes.
  • Expandable Modular System
  • Applications: Analog And Central Office Lines For Pbx Or Ksu
  • Agency Approval: Ul 497a (secondary)
  • Grounding Requirements: Uses Electrical Ac Ground
  • Recommended Grounding Impedance: <0.5ohm
  • Signal Perfect Circuitry
  • Autoresetting Ptcs: 160 Ma (810 Ohms)
  • Clamping Level: 260v
  • Response Time: 15 Nanoseconds
  • Capacitance: <50pf
  • Suppression Modes: Metallic And Longitudinal
  • Wires Protected: 50wires (25pairs)
  • Termination Type: 110 Punchdown Input Rj11/rj45 Or 110 Punchdown Output
  • Brand: Itw Linx
