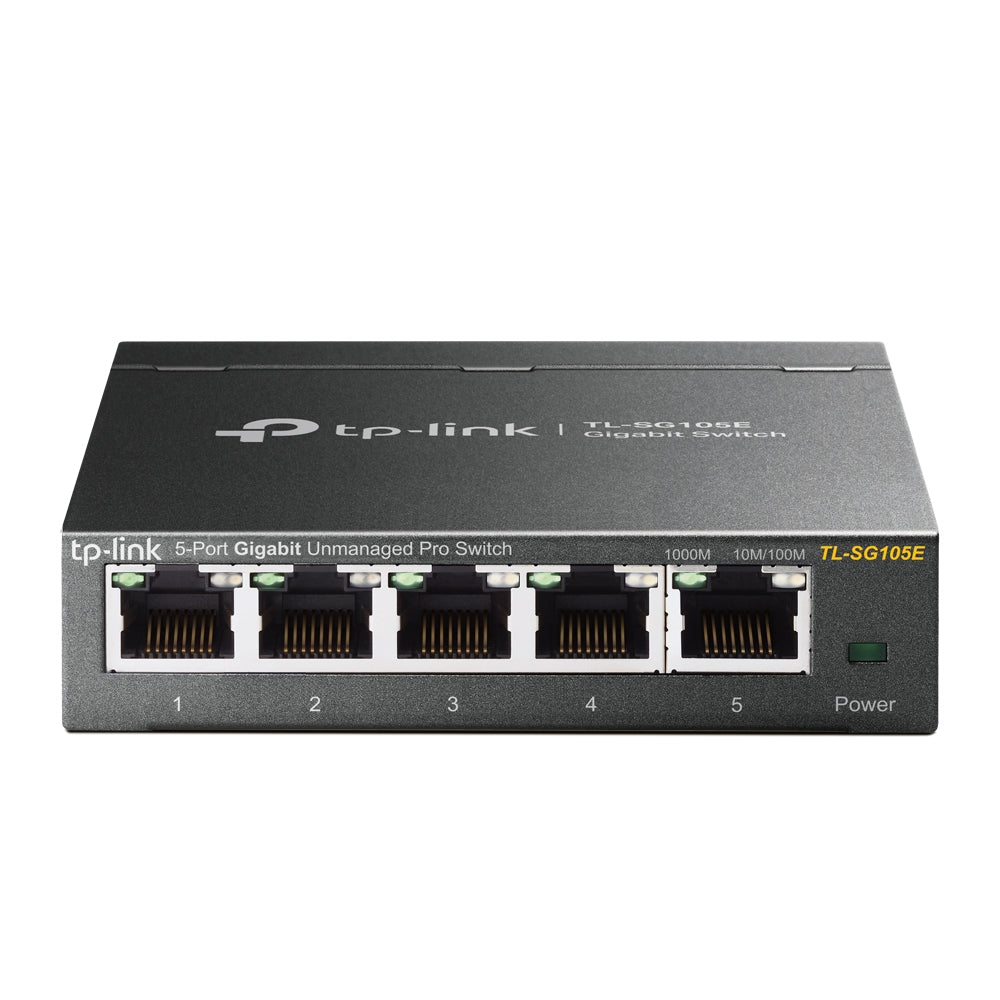

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch, Stock# TL-SG105E
TP-Link

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch, Stock# TL-SG105E

Availability: In Stock
$27.88
Wishlist Compare

Product features


5-Port Gigabit Desktop Easy Smart Switch, 5 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping

Features:

  • 5 10/100/1000Mbps ports provide instant large file transfers
  • Innovative energy-efficient technology reduces power consumption
  • IEEE 802.3x flow control provides reliable data transfers
  • 15K Jumbo frame improves performance of large data transfers
  • Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
  • Port-based/802.1p/DSCP QoS2 enable smooth latency-sensitive traffic
  • Abundant VLAN features improve network security via traffic segmentation
  • IGMP Snooping optimizes multicast applications
  • Web-based user interface1 and management utility simplify configuration

HARDWARE FEATURES

Standards and Protocols :
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface :
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity : Fanless
Power Supply : External Power Adapter(Output: 9VDC/0.6A)
Power Consumption : Maximum: 2.49W (220V/50Hz)

PERFORMANCE

Packet Forwarding Rate : 7.4Mpps
MAC Address Table : 2K
Packet Buffer Memory : 1.5Mb
Jumbo Frame : 15KB

OTHERS

Certification : FCC, CE, RoHS
Package Contents : TL-SG105E
Power Adapter
Installation Guide
Resource CD
Rubber Feet

System Requirements : Microsoft Windows for running Utility

NEW IN THE BOX
