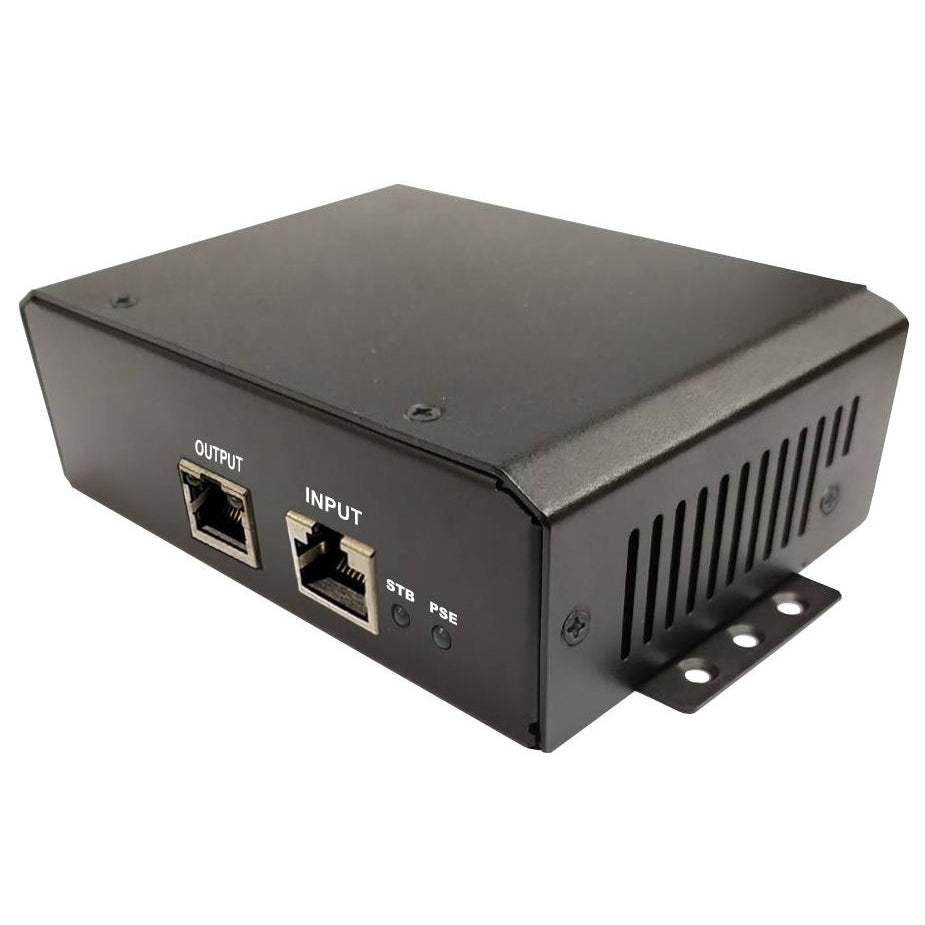

Tycon 10-60VDC Input, 56V 4Pair Gigabit 802.3at PoE Output, 70W High Power Inserter, Part# TP-DC-1256GD-VHP
power over ethernet

Tycon 10-60VDC Input, 56V 4Pair Gigabit 802.3at PoE Output, 70W High Power Inserter, Part# TP-DC-1256GD-VHP

Availability: In Stock
$339.94
Wishlist Compare

The quality Tycon TP-DC-1256GD-VHP 10-60VDC Input, 56V 4Pair Gigabit 802.3at PoE Output, 70W High Power Inserter is a high-performance DC to DC converter and PoE inserter designed to meet the latest 802.3bt PoE standard. This unique PoE inserter delivers 56VDC Class 8 802.3bt PoE power on all 8 Ethernet wires (4 pairs), ensuring robust and reliable power delivery. With support for data throughput rates up to 5 Gigabit, it is backward compatible with 802.3at devices, making it versatile for various applications.

It is a Gigabit 10-60VDC IN 56VDC OUT 70W 4 Pair Hi Power 802.3at PoE inserter. For Axis Q60 series PTZ cameras. UPOE Compatible. Metal Housing.

Highlights:

• DC to DC Converter
• 10VDC to 60VDC Input Voltage
• 56VDC 802.3bt PoE Output
• Up to 70W High Power Output
• Dual DC Inputs

Features – DC to DC Converter

  • DC to DC Converter
  • Input Voltage: 10VDC to 60VDC
  • 8 wire (4 Pair) 56VDC 802.3bt PoE Output
  • High Power Output: Up to 70W
  • Dual DC Inputs: For connecting 2 power sources
  • 5 Gigabit Data Throughput
  • Low Voltage Disconnect Feature
  • Protection: Short Circuit, Over Current, and Reverse/Over Voltage Protection
  • Industrial Temperature Range: Up to 70°C

Applications

  • 12VDC / 24VDC / 48VDC Remote Power Systems
  • 48VDC or -48VDC Remote Power Systems: Isolated In/Out
  • 802.3bt Compatible Devices
  • 802.3bt Compatible High Power Cameras and Radios

Dimensions: 7 × 4 × 2 inches



NEW IN THE BOX
