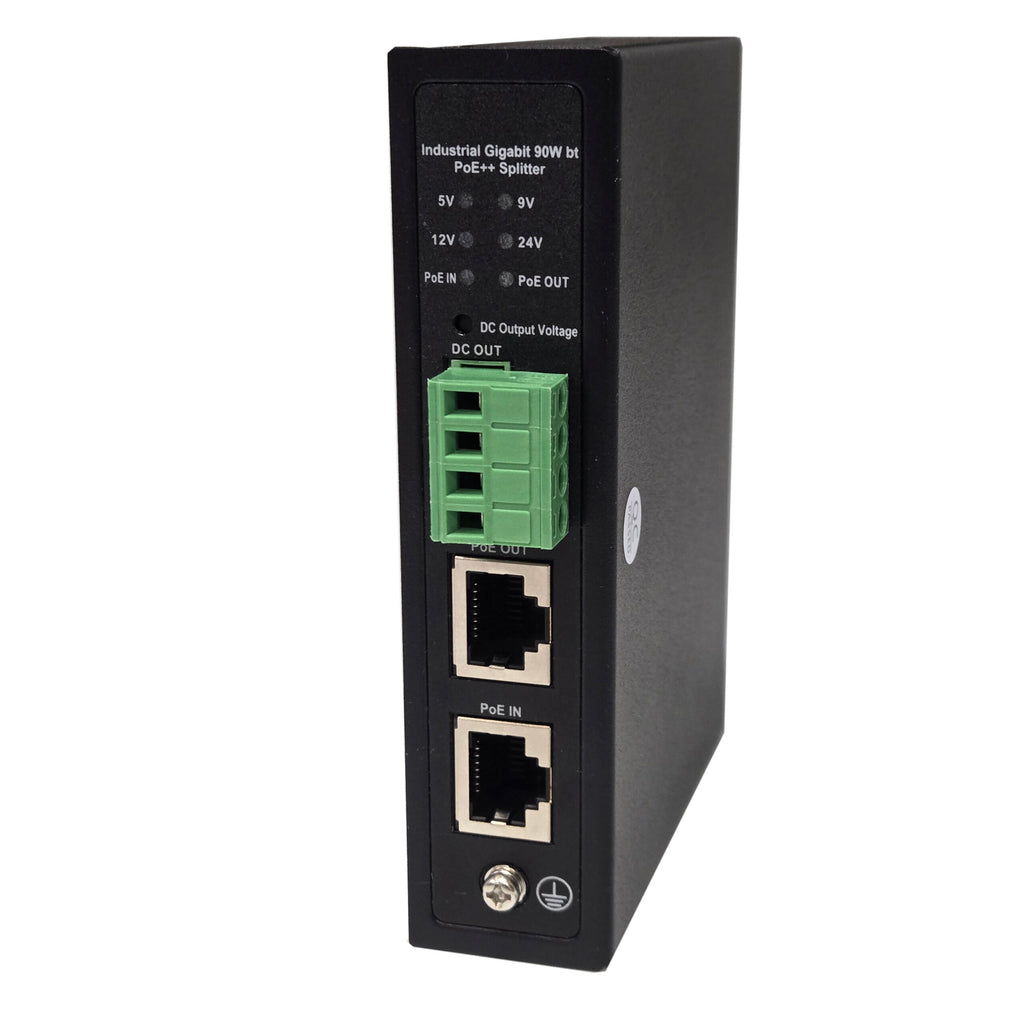

Tycon Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE IN; 5V, 9V, 12V, 24V, 802.3bt PoE Output, 72W Max, Part# POE-SPLT-BT-Uni-P
power over ethernet

Tycon Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE IN; 5V, 9V, 12V, 24V, 802.3bt PoE Output, 72W Max, Part# POE-SPLT-BT-Uni-P

Availability: In Stock
$108.74
Wishlist Compare

The efficient Tycon POE-SPLT-BT-Uni-P Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE IN; 5V, 9V, 12V, 24V, 802.3bt PoE Output, 72W Max is a  90W PoE Splitter, 802.3af/at/bt compatible, 5/9/12/24V Selectable Voltage Output 72W, Green wire terminal, PoE output with data passthrough, -40 to +75C.

This is a perfect device to supply DC power and data to a device that is not PoE capable. The PoE Splitter works by accepting a combined PoE/Data input and splitting out the Voltage and Data on separate connectors. The POE-SPLT-BT-UNI-P is universal in nature in that it will supply 5V, 9V, 12V or 24V DC to accommodate almost any DC powered equipment.

Highlights
• 802.3af/at/bt PoE IN to VDC & PoE OUT
• Selectable VDC Output: 5V,9V,12V, 24V
• Up to 72W OUT with 90W IN
• Gigabit Ethernet compatible
• Industrial Operation: -40C to +75C

Features

  • PoE Splitter
  • Ethernet compatible
  • Combined Outputs up to 72W with 90W input
  • 2 pair and 4 pair input compatible
  • Short Circuit, Over Current, Over Temperature Protections
  • DIN Mount Metal Housing
  • Industrial Temperature Operation: -40C to +75C

Dimensions: 6 × 4 × 1.5 inches



NEW IN THE BOX
