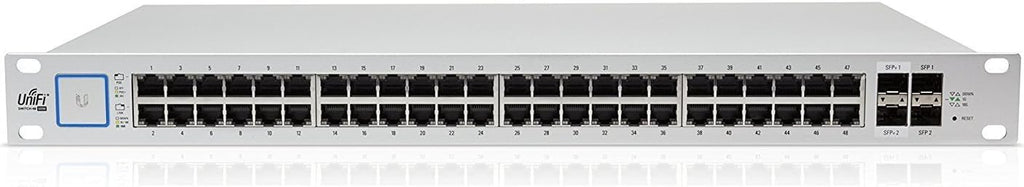

Ubiquiti UniFi Switch - 48 Ports Managed US-48-500W
Ethernet Switch

Ubiquiti UniFi Switch - 48 Ports Managed US-48-500W

Availability: In Stock
$995.00
Wishlist Compare

The versatile Ubiquiti UniFi Switch - 48 Ports Managed US-48-500W a fully managed 48 port PoE+ Gigabit switch that delivers robust performance, intelligent switching for growing networks. The US-48-500W delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.



Max. PoE Output: Up to PoE+

Total PoE Availability: 500W

Form Factor: Rack mount (1U)



Ports:

  • 1 GbE RJ45: 48 (All PoE+) (1G/100M/10M)
  • 1G SFP: 2 (1G)
  • 10G SFP+: 2 (10G/1G)


PERFORMANCE:

Access Lists:

  • IPv4: 128
  • MAC: 128


LAYER 2 FEATURES:

  • LACP Port Aggregation: Yes

  • STP & RSTP: Yes

  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes

  • IGMP Snooping: Yes

  • 802.1X Control: Yes

  • MAC-Based ACLs & Device Isolation: Yes

  • DHCP Snooping & Guarding: Yes

  • Egress Rate Limit: Yes

  • Flow Control: Yes

  • Storm Control: Yes

  • Multicast & Broadcast Rate Limiting: Yes

  • MAC Address Blocking: Yes

  • IP-Based ACLs & Network Isolation: Yes

  • MAC-Based Port Restriction: Yes

  • Port Isolation: Yes

  • Port Mirroring: Yes

  • Jumbo Frames: Yes

  • LLDP-MED: Yes

  • Voice VLAN: Yes

  • Loop Protection: Yes

  • Virtual Network Override: Yes



Hardware:

  • PoE Ports: PoE+ 48
  • Power Method: Universal input, 100–240V AC, 50/60 H

  • Power Input Method: AC Input

  • Power Supply: AC/DC, internal, 500W

  • Supported Voltage Range: 100-240V AC

  • Management: Ethernet

  • Mount Material: SGCC Steel

  • Supported Rack Depth: 400~1200 mm (15.7-47.2")

  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant


SOFTWARE

  • Application Requirements UniFi Network: Version 6.3.51 and later


Dimensions: 485 x 374.6 x 43.7 mm (19.09 x 14.75 X 1.72'')


NEW IN THE BOX
